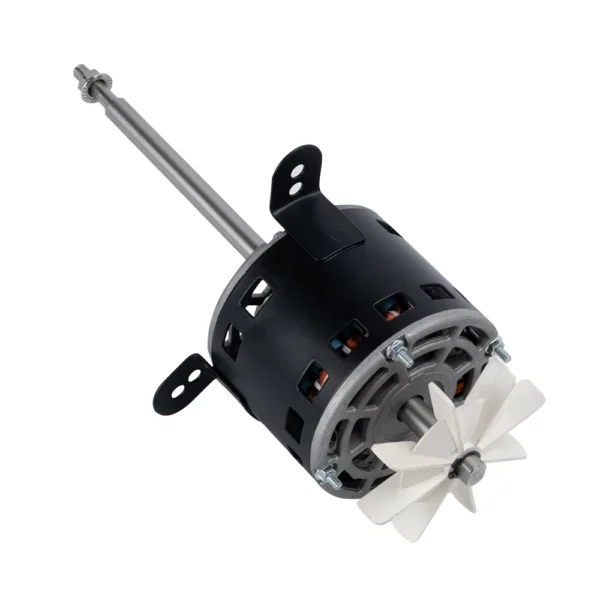

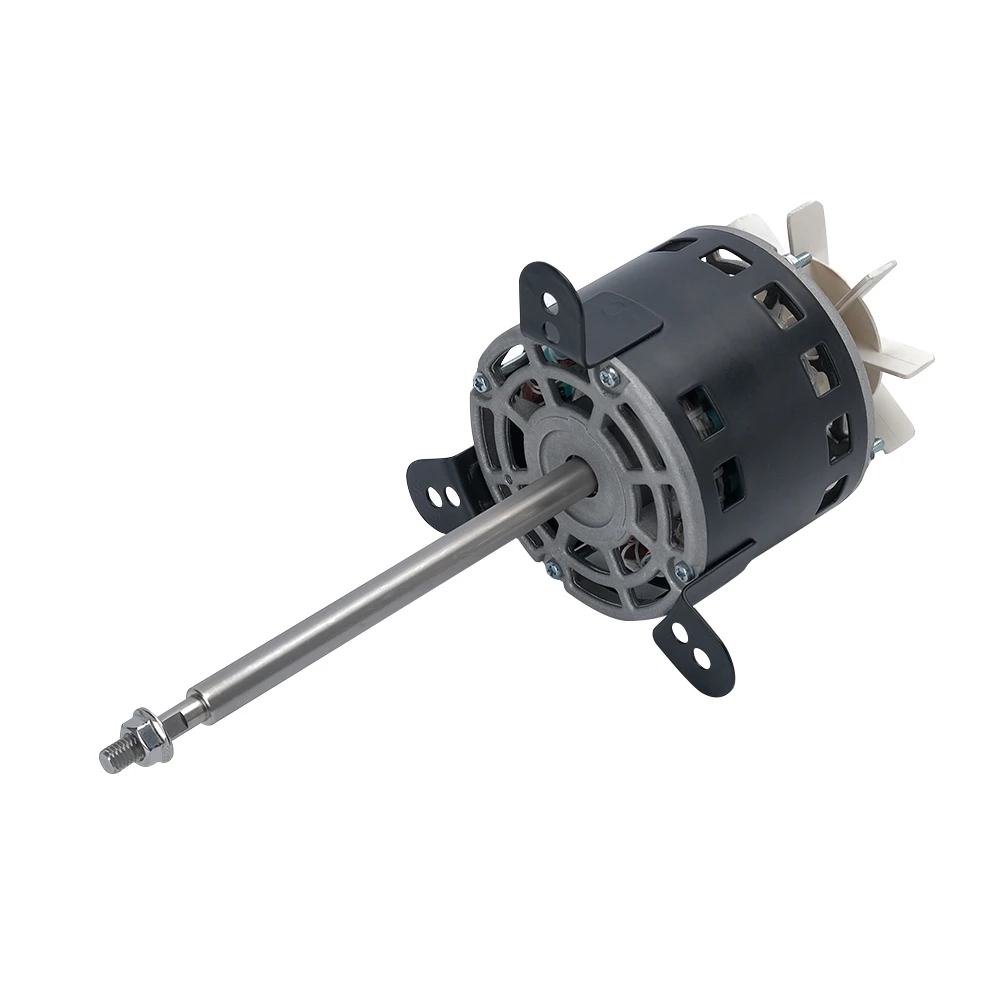

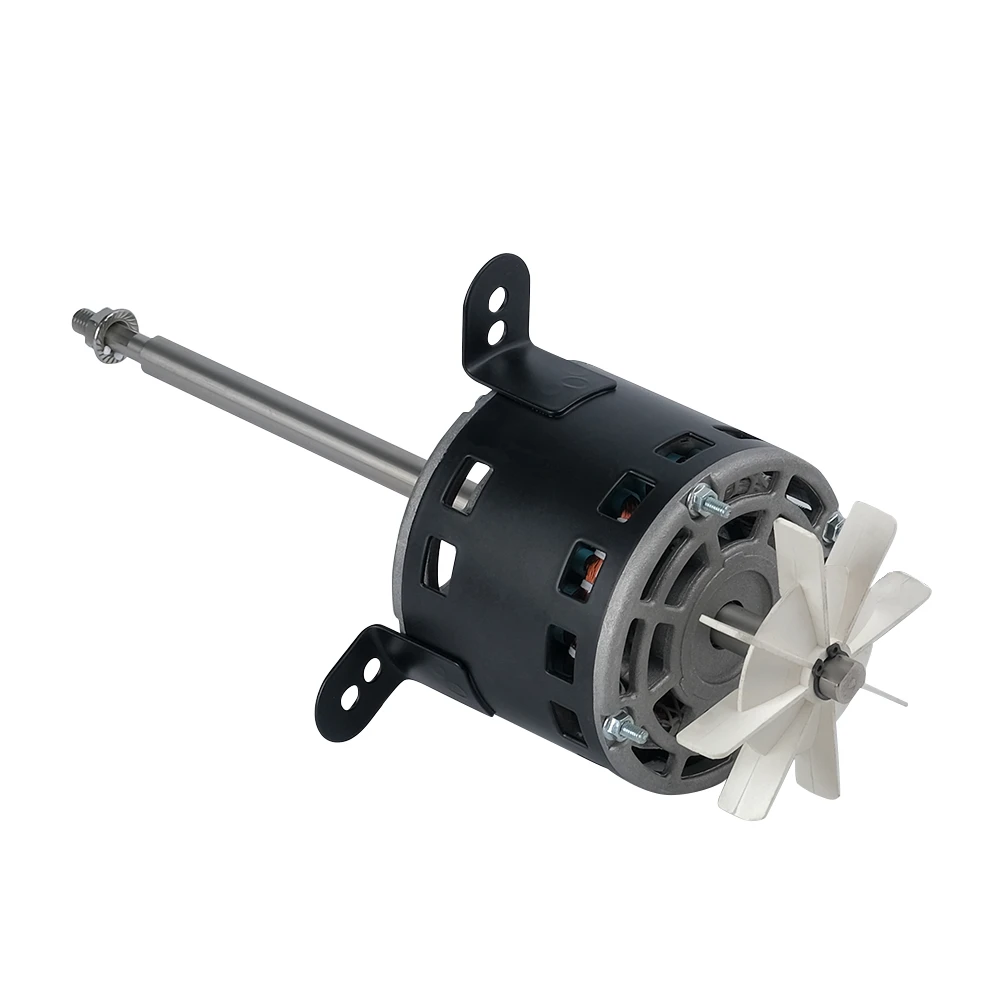

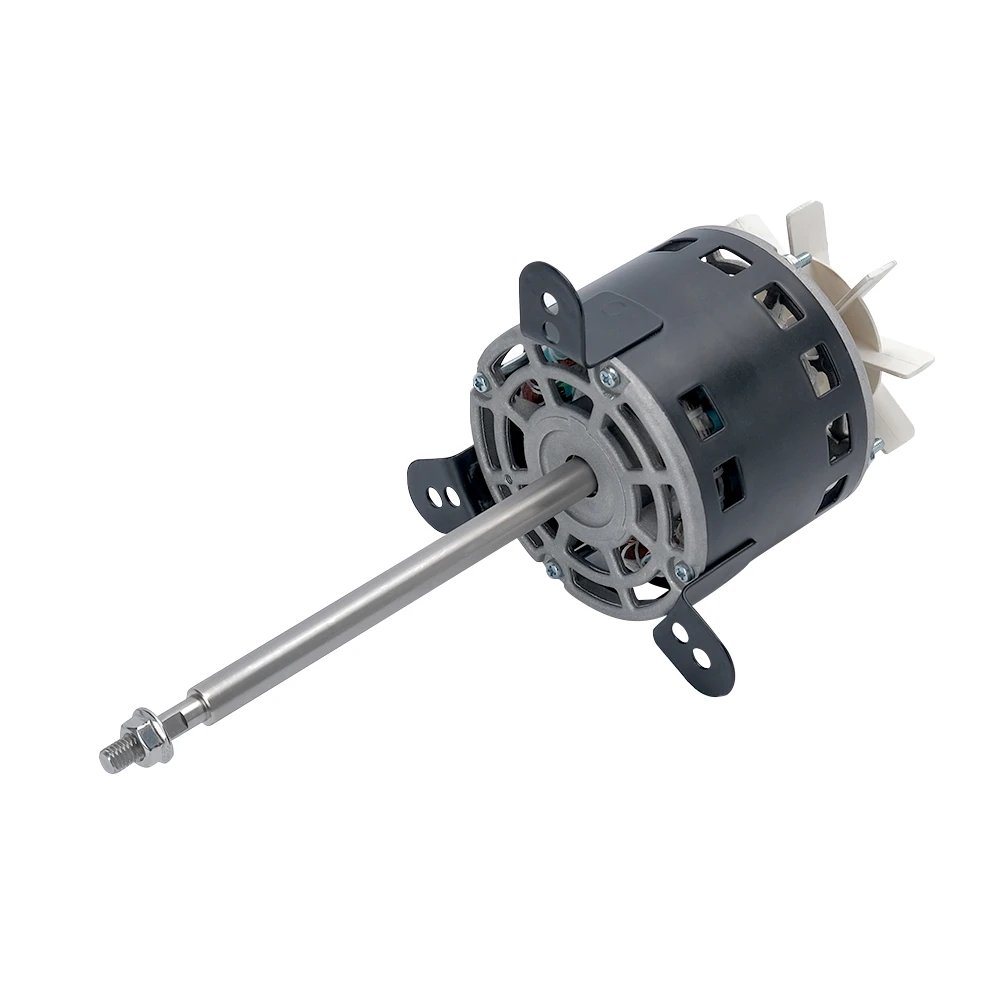

| YDK95-40W-4 Three-phase Experimental equipment motor | |
| Parameter | |
| Model | YDK95-40-4 (T514) |
| Horsepower | 40W |
| Nameplate Speed | 1400 rpm |
| Number of Speed | 1 |
| Phase | Single-phase |
| Voltage | 220V AC |
| Frequency | 50Hz |
| Current | 0.35A |
| Ins. Class | B |
| Protection | IP20 |
| Motor Shaft Rotation | CWSE |
| Dimensions | |
| Shaft Diameter | 8mm |
| Shaft Length | 169mm |
| Motor Diameter | 98mm |
| Motor length less shaft | 130mm |
| Mounting Bolt Pattern |
Φ 112mm & Φ132mm (6-Φ7mm) |
| Application | |
| Motor Usage | Experimental equipment, Constant Temperature Humidity Chamber, climate chamber, Rapid Temperature Change Test Chamber, Temp / Humid / Vibration Test Chamber, Walk-in Test Chamber, Thermal Shock Chamber, Transmittance test box, etc. |
