Φ190 AC Centrifugal Fans Backward Curved （Galvanised sheet metal impeller）
| Descriptions | ||||||
| Impeller Material: | Galvanised sheet metal | |||||
| Type of Protection: | IP44 | |||||
| Bearings: | Maintenance Free Ball Bearings | |||||
| Mode of Operation | S1 | |||||
| Protection | TOP wired internally | |||||
| Insulation Class | B | |||||
| Direction of Rotation: | CCW LE(Seen on the leads) | |||||
| Amb. Temp.: | -25℃ ~ +60℃ | |||||

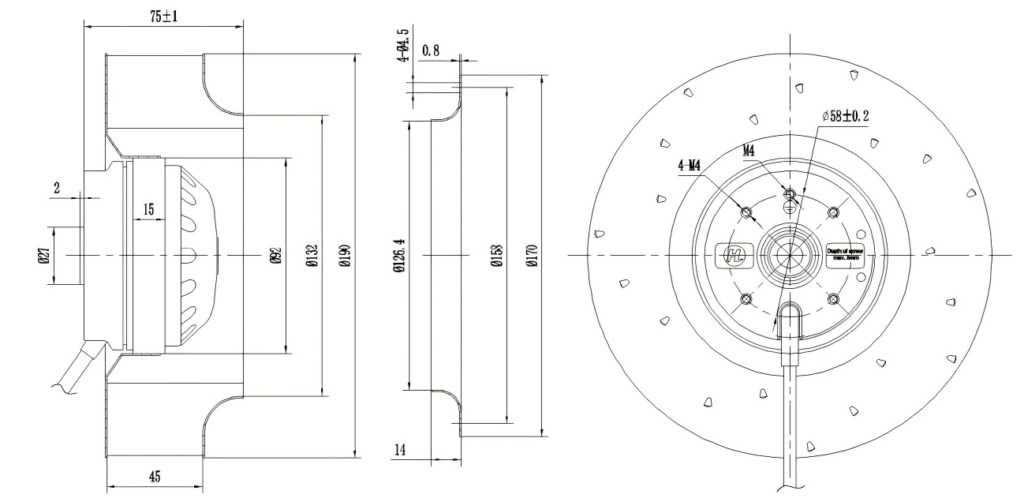

| Overall Size | ||||||||
 |

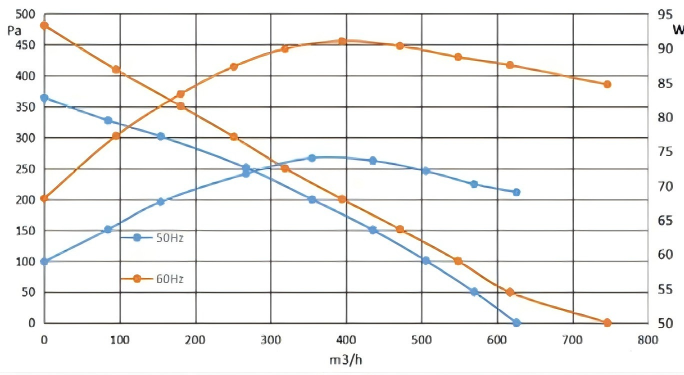

| Performance Parameters | ||||||||
| Model | Voltage (V) |
Frequency (Hz) |
Capacitor (μF/VAC) |
Speed (r/min) |
Current (A) |
Power (W) |
Air Flow (0Pa) (m3/h) |
Noise (dB(A)) |
| L2B190/045B-201A1-2 | 220 | 50 | 2.5/450 | 2470 | 0.31 | 69 | 620 | 64 |
| 60 | 2680 | 0.4 | 85 | 745 | 72 | |||
 |
